PRODUCT INFORMATION

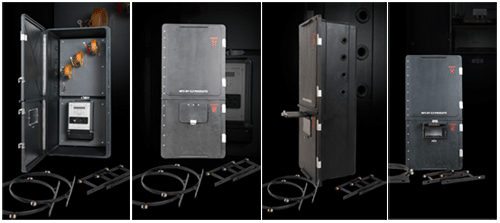

  DTC Metering Box for Distribution Transformer Center & LT Tamper Proof Box Made out of (FGRP)SMC


Features and Advatages
Download Brochure


Compact Design with Elegant Appearance.
Light Weight & Durable.
Wide Range for Different Applications in power Sector.
Uniq Space for mounting Energy Meter and Busbars/CTs for cable Connections.
Current Transformers for Energy Meter is provided as per customer Technical Specification.
Arrangements for fixing CTs & termination to Energy Meter.
Display window of polycarbonate on the front door to monitor Energy meter.

Excellent performance in all weather conditions like Costal Humidity, Heavy Rains, Solar Radiation & Polluted Atmosphere.
Safe for consumers, General Public as well cattle due to insulated body.
Maintenance free: Rustproof & Shockproof.
Fire Retardant, Rot proof and termite resistant.
Useful for both indoors and outdoors applications.

Development of our products are achieved by in-house compression molding and injection molding.

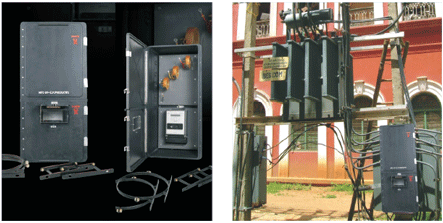

             DTC Metering Box                DTC Metering Box Serviced on pole

  Techical Specifications

The systems is design as per Electrical Power Distribution Requirements and consisting of protection devices and metering also as per the IS Standards & Customers requirements.

FGRP molded in Single piece of thickness of 3.5mm.
Hot press moulded by FGRP(SMC)
Aunti rust aluminum Hardware for wire Seal Temperproof.
Concealed stainless steel hinges.
Hinges Riveted from inside.
Unique Space for cable entry and Connection as per IS Standards.
Adequate rating of Aluminum Busbar with colour coded heat shrinkable sleeves.

CT Coils as per IS -2705/1992 & Ratio 50/5A, 75/5A & 100/5A & 800/5A of class1.0 & 0.5 Ring Type, Fibre Glass tape wound, & 3.75 VA Burden.
FGRP SMC Insulators for mounting Aluminum Busbar
Mounting Arrangements of box for Pole Mounting & Wall Mounting.
FGRP SMC sheet for Energy meter mounting with suitable thickness.
Gasket Arrangement for dust/vermin proof/waterproof.
Waterproof PVC Cable glands for both incoming & outgoing cables.

Excellent facilities for tool and Mould Development through Computer Aided Design.

The product have been tested in a Govt of India Recognized NABL Ceertified Lab.

Development of our products are achieved by in- house compression Moulding & Injection Moulding.
